Thermoplastic Road Paint Preheater Boiler Kettle

Description

Lighten Traffic Thermoplastic preheater/Kettel is used for preheating, melting, and stirring paint continuously, preparing hot melt materials for the thermoplastic machine during long distance road lines marking work. Good thermoplastic melter for road marking.

Power(W):	5.5HP	Dimension(LWH):	195018001800mm
Weight:	940kg	After-sales Service	Video technical support, Online support, Engineers available
Warranty:	2 year	Condition:	New
Place of Origin:	Jiangsu, China (Mainland)	Brand Name:	Lighten Traffic
Features:	Quick Heating	Certification:	CE ISO SGS
Capacity of tank:	600kg*2 / 350kg	Paint Tank Capacity:	70/40L
Material Temperature	180C°-220C°	Hydraulic Moto Brand:	BM
Rotational System:	20-100r/min	Hydraulic System Pressure	5PA
Diesel Engine:	15P Electric-started water cooling engine	Bottom thickness:	6mm
Supply Ability:	50 Set/Sets per Month	Packaging Details	Naked or Pallet or Wooden Box

Model	LT--RM02	LT--RM03
Tank Quantity	Double Tanks	Single Tanks
Size (L×W×H)	180017001580 mm	17909101580 mm
Net Weight	1020kg	600kg
Heating Temperature	180℃-220℃
Diesel Engine	15P Electric-started water cooling engine/8PElectric-started water cooling engine
Hydraulic Oil Tank Capacity	70L/40L
Thermal Insulation Layer	4mm thickness steel plate, 5cm thickness insulation cotton and 1mm thickness stainless steel
Paint Tank Bottom Thickness	6mm
Heating System	Liquefied petroleum gas (natural gas), adopt energy-efficient burner (Direct injection Stove)
Rotating Speed of Stirring Device	20-100r/min.
Hydraulic System Pressure	5 Mpa
Working Pressure	4-5 Mpa

Stove:Multi stove heated, ensuring the temperature Multi-way selector valve:The two function levers control
of the tank and uniform heat of the thermoplastic the two hydraulic motor. The left function lever controls the
powder. left motor and the right controls the right motor.each selector
valve has three mode: forward, reverse and no work.

Dynamic transmission system:The diesel is connected with the gear pump through the clutch. The hydraulic multi-way valve
controls the hydraulic motor so that the stirring shaft is driven to rotate and stir thermoplastic paint evenly.The stirring shaft’s
rotational speed is adjusted by the throttle valve. Working pressure in the hydraulic system is adjusted by the overflow valve
of the multi-way selector valve. The pressure gauge indicates the pressure value.

Steps of Using Kettle:

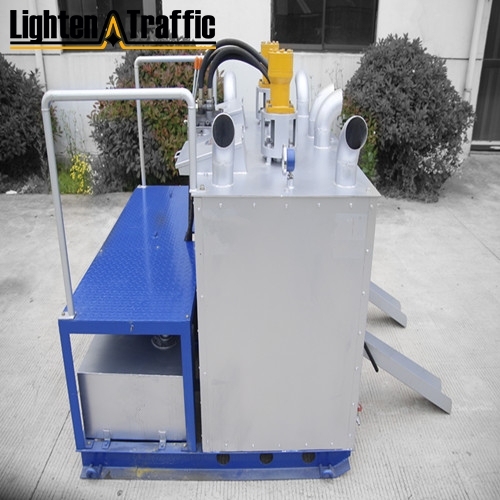

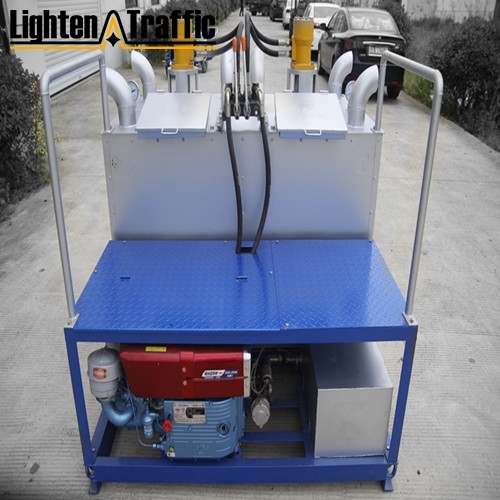

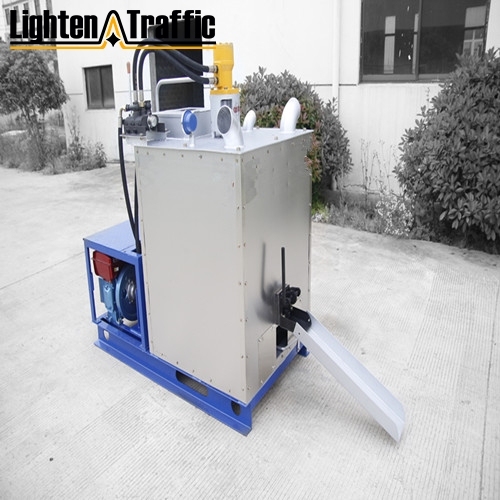

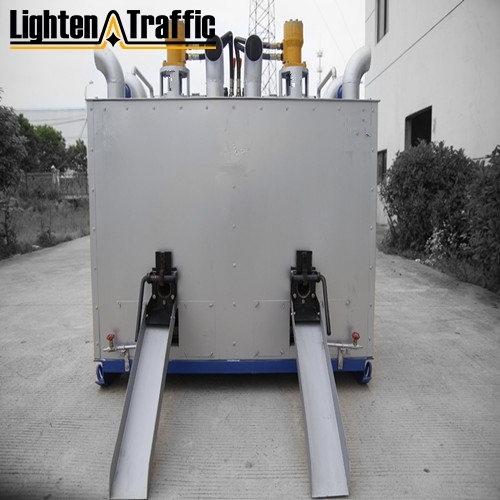

Double/Single Tank Thermoplastic Preheater/Kettle
